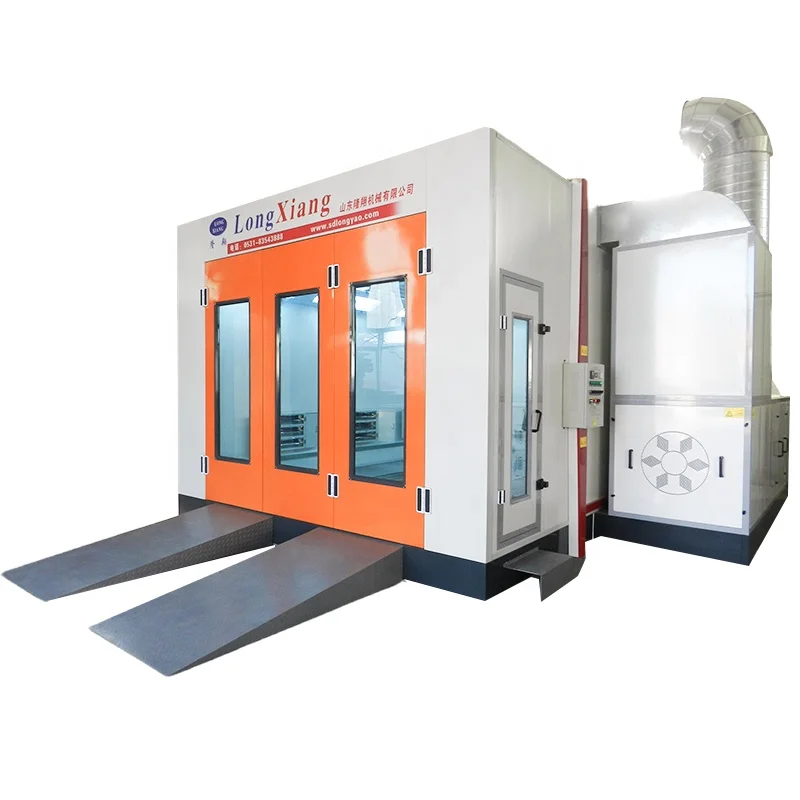

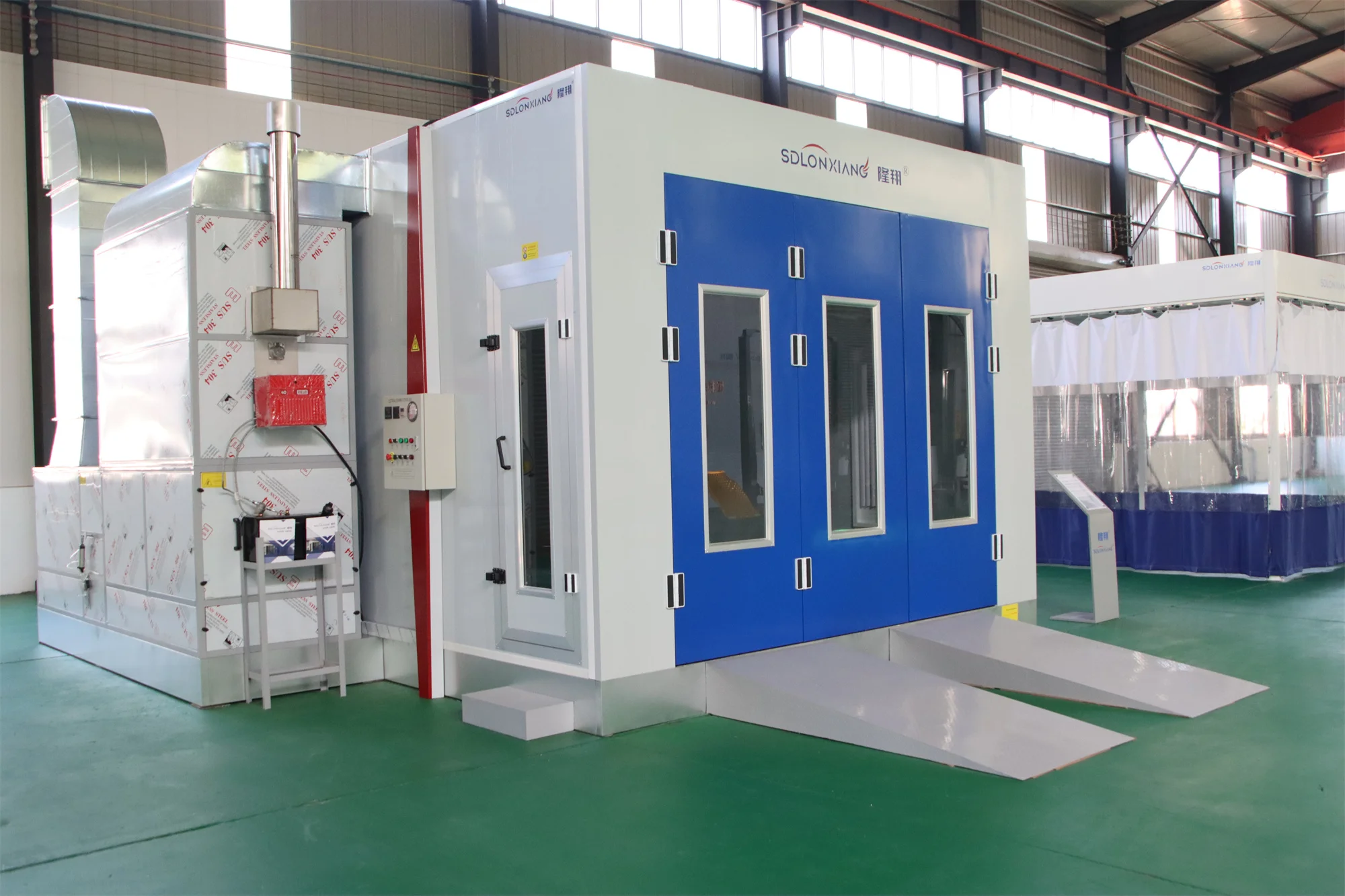

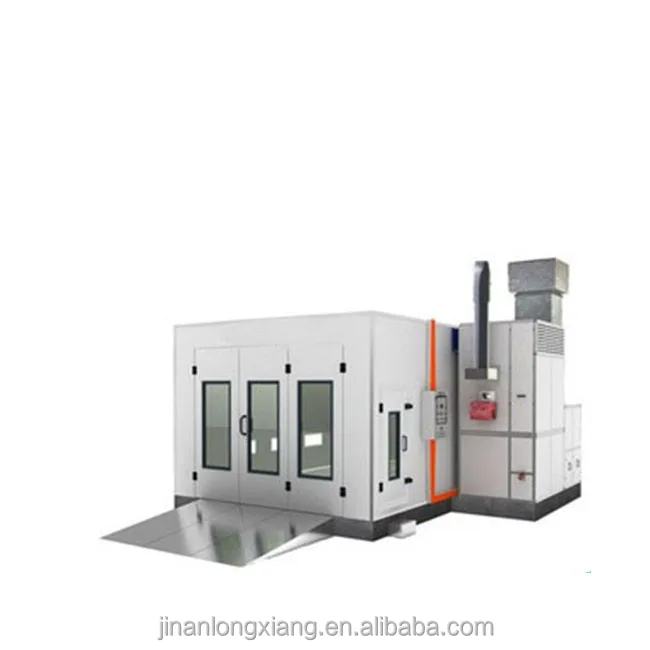

LX-3
|
||||||||
Outside size |
7000x5200x3400mm(LxWxH) |
|||||||
Inside size |
6900×3900×2650mm(L×W×H) |
|||||||

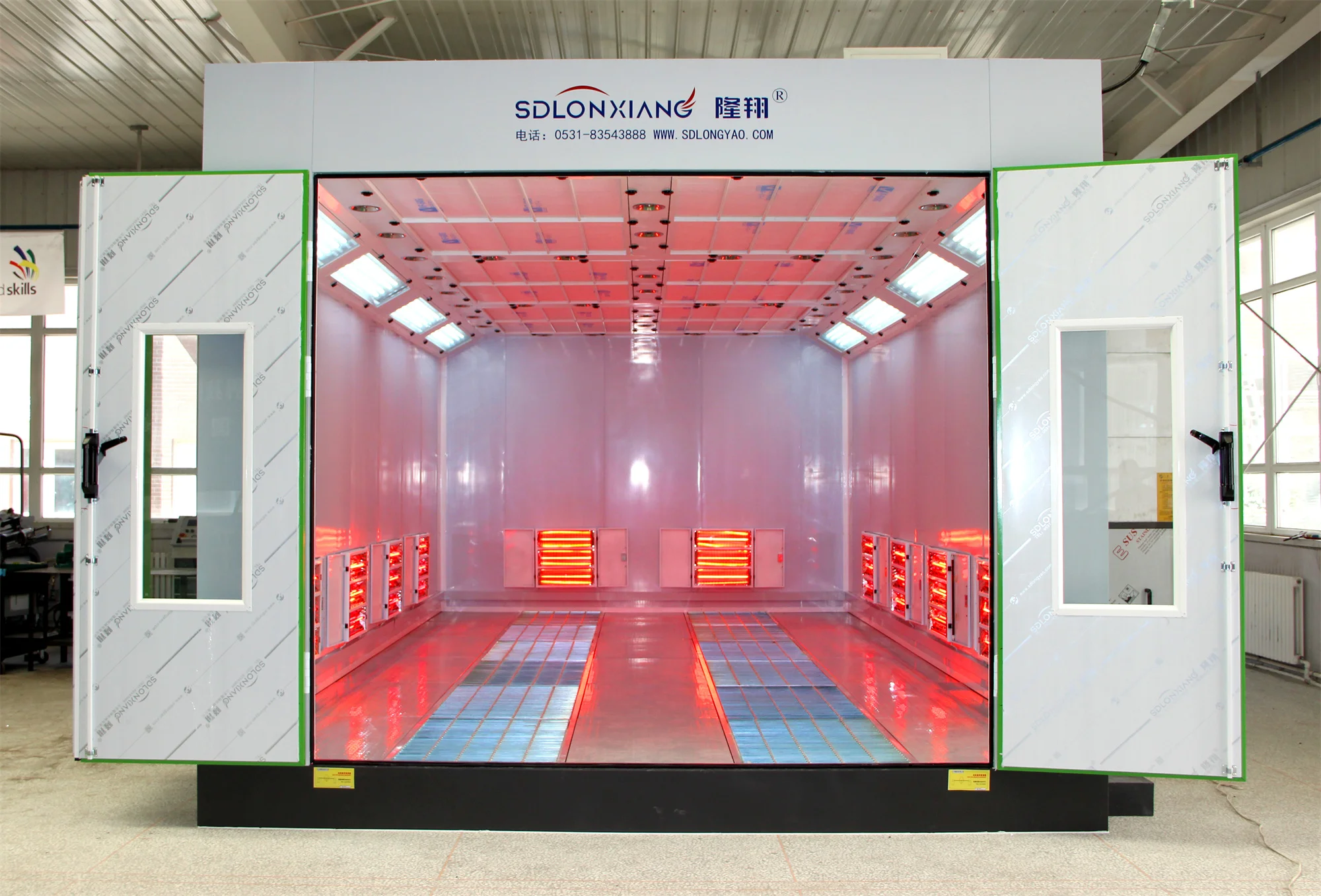

Entrance door |
3 folds，3000x2600 mm(W×H), bending steel door |
|||||||
Emergency door |
650*2000mm(W*H),equipped with handle lock |
|||||||
Main System |
||||||||
Cabin system |
Wall panel |
-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel. |
||||||
Basement |
-Galvanized steel assemble,280mm high,with steel structure support,2 rows grills ,3 rows of diamond plates. -2 ramps,external setting,620*2000mm(W*L)/pc |
|||||||
Ventilation system |
Inlet fan |
2*3kw double-intake centrifugal fans, air capacity:10000m³/h for each set |
||||||
Outlet fan |
1*5.5kw double-intake centrifugal fans, air capacity:15000m³/h for each set |
|||||||
Cabinet setting type |
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful . -Cabinet for the fan*1unit ,air duct *2units, -Elbow:90°*1 unit |
|||||||
Heating system |
Burner |
Italy RIELLO G10 oil burner, heating capacity: 1 00000Kcal/h, heating time:6-8 min(20-60℃),fuel consumption is 5-8kg/vehicle,with pneumatic damper |
||||||
Heat Exchanger |
1.2mm thickness SUS304 stainless steel |
|||||||
Cabinet |
Rock-wool insulation*1 unit |
|||||||

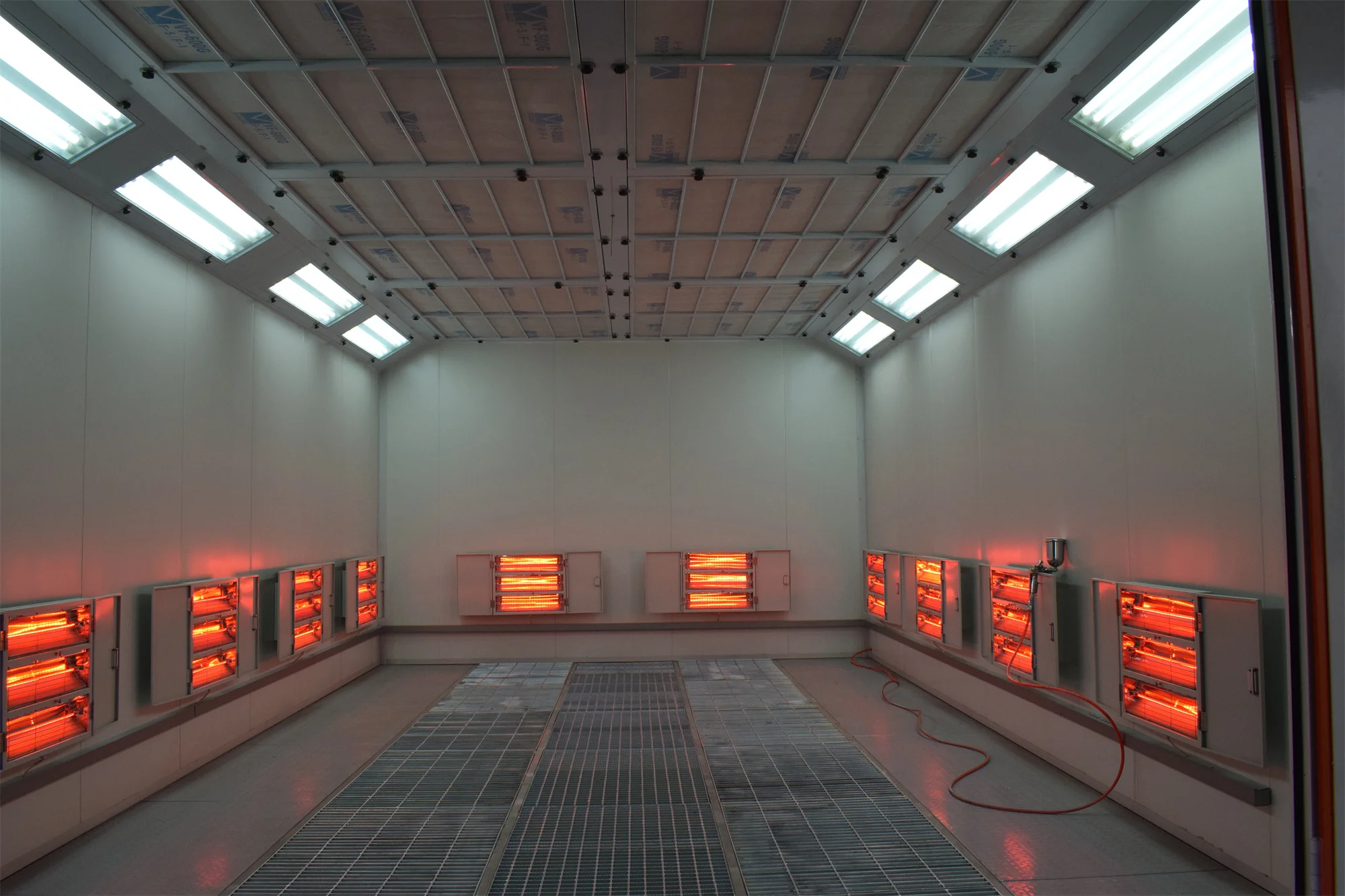

Lighting system |
Ceiling lights |
8*4pcs*16w LED lighting |
||||||
Side lights |
8*2pcs*16w LED lighting. |
|||||||
Filtering system |
Primary filter |
Grade G2 plate type , filtering rate＞83% |
||||||
Ceiling filter |
EU5 grade high efficient filter,filtering rate＞98% |
|||||||
Floor filter |
Multi-layer fiberglass filter,filtering rate＞70% |
|||||||
Control system |
Control panel |
Intelligent control system |
||||||
Function |
Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etc |
|||||||
Total power |
12.2 KW |
|||||||
Voltage/ frequency
|
380V,50HZ,3phase |
|||||||
