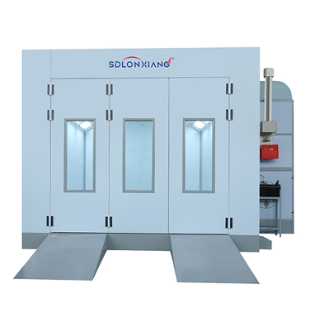

Advanced Filtration Technology in Modern Industrial Paint Booths
Industrial paint booths are critical in manufacturing, ensuring high-quality, uniform paint finishes on products ranging from cars and machinery to furniture and metal parts. A key factor in their performance is advanced filtration technology, which has transformed how these booths operate. Modern filtration systems not only protect workers and the environment by removing harmful particles and fumes but also improve paint quality, reduce waste, and enhance efficiency. This guide explores the advanced filtration technologies used in today’s industrial paint booths, their roles, benefits, and how they contribute to better industrial painting processes.
Why Filtration Matters in Industrial Paint Booths
Industrial paint booths use spray guns to apply paints, primers, and coatings, which release tiny paint particles (overspray) and volatile organic compounds (VOCs) into the air. Without effective filtration, these contaminants can:
- Harm workers’ health, causing respiratory issues or skin irritation.
- Damage the environment by releasing pollutants into the air.
- Ruin paint finishes, as overspray particles land on wet paint, creating defects like bumps or unevenness.
- Clog equipment, leading to frequent breakdowns and increased maintenance costs.
Advanced filtration technology addresses these issues by capturing overspray, removing harmful fumes, and maintaining clean air inside and outside the booth.
Key Advanced Filtration Technologies in Modern Industrial Paint Booths
Modern industrial paint booths use a combination of filtration systems to handle different types of contaminants. Each technology targets specific particles or fumes, ensuring comprehensive air purification:
1. Dry Filtration Systems
Dry filtration is the most common technology in industrial paint booths, using porous materials to trap overspray particles. Recent advancements have made these systems more efficient and longer-lasting:
- Pre-Filters: These are the first line of defense, capturing large overspray particles (5–10 microns or larger). They are usually made of fiberglass, polyester, or cellulose, arranged in a pleated or layered design to maximize surface area. Advanced pre-filters use electrostatically charged materials that attract particles, improving capture efficiency by up to 30% compared to traditional filters.
- Main Filters: After pre-filters, main filters trap smaller particles (1–5 microns). High-efficiency main filters, like those made of synthetic media or activated carbon blends, can capture up to 99% of fine overspray. Some use gradient density media, where the filter material gets denser from front to back, allowing it to trap more particles without clogging quickly.
- HEPA Filters: For ultra-fine particles (0.3 microns or smaller), HEPA (High-Efficiency Particulate Air) filters are used in specialized booths, such as those painting medical equipment or electronics. They ensure no tiny particles escape to contaminate the workspace or final product.
Dry filtration systems are popular because they are easy to install, low-maintenance, and work with most paint types, including water-based and solvent-based coatings.
2. Wet Filtration Systems
Wet filtration (or water wash systems) uses water to capture overspray, making them ideal for high-volume industrial paint booths where large amounts of overspray are generated:
- How They Work: Overspray-laden air is directed into a water curtain or spray chamber. Paint particles mix with water, forming sludge that is collected and removed. Clean air then exits the booth after passing through a demister (a screen that removes water droplets).
- Advancements: Modern wet systems use recirculating water with additives (like coagulants) that help paint particles clump together, making them easier to remove. Some also include ultrasonic nozzles that create fine water mist, improving particle capture efficiency for small overspray.
- Benefits: Wet filtration handles heavy overspray better than dry filters, reducing the need for frequent filter changes. They also help control dust and reduce fire risks, as water cools the air and suppresses flammable vapors.
Wet systems are often used in automotive and large machinery painting, where high spray rates generate significant overspray.
3. Carbon Filtration for VOC Removal
Volatile organic compounds (VOCs) are chemicals released by solvent-based paints that can be toxic and contribute to air pollution. Carbon filtration technology targets these harmful gases:
- Activated Carbon Filters: These filters use porous activated carbon, which has a large surface area to adsorb (trap) VOC molecules. The carbon’s tiny pores attract and hold VOCs, preventing them from escaping into the air.
- Advanced Designs: Modern carbon filters use impregnated carbon (treated with chemicals like potassium permanganate) to target specific VOCs, improving removal efficiency. Some systems also include catalytic converters that break down VOCs into harmless water and carbon dioxide, reducing the need for carbon replacement.
- Integration: Carbon filters are often used after particle filters, ensuring that first overspray is removed, then VOCs are captured from clean air. This two-step process ensures both particles and gases are filtered effectively.
Carbon filtration is essential for complying with environmental regulations, which limit VOC emissions from industrial processes.
4. Electrostatic Filtration
Electrostatic filtration uses electric charges to capture fine particles, offering high efficiency for small overspray:
- How It Works: Air enters an ionization chamber where particles are given a positive electric charge. They then pass through a collection plate with a negative charge, which attracts and traps the charged particles. Clean air exits the system.
- Advancements: Modern electrostatic systems use low-energy ionizers that reduce power consumption while maintaining high particle capture rates. They also include self-cleaning features (like automatic plate washing) to reduce maintenance.
- Best For: Electrostatic filters excel at capturing ultra-fine particles (less than 1 micron) that dry filters might miss. They are used in high-precision painting, such as aerospace components or luxury vehicle finishes.
5. HEPA and ULPA Filtration for Cleanroom Paint Booths
In industries requiring extreme precision (like electronics or medical device manufacturing), industrial paint booths use HEPA or ULPA (Ultra-Low Penetration Air) filters to create a cleanroom environment:
- HEPA Filters: Remove 99.97% of particles 0.3 microns or larger.
- ULPA Filters: Even more efficient, removing 99.999% of particles 0.12 microns or larger.
These filters are used in conjunction with laminar airflow systems, which direct clean air in a steady, uniform stream over the product. This prevents any contaminants from landing on the wet paint, ensuring flawless finishes.
Benefits of Advanced Filtration in Industrial Paint Booths
Advanced filtration technology offers numerous advantages for industrial operations:
1. Improved Paint Quality
Clean air inside the booth means fewer particles land on wet paint, reducing defects like dust spots, orange peel (uneven texture), or runs. This lowers rework rates, saving time and material costs. For example, automotive plants using HEPA and carbon filtration report up to 50% fewer paint defects compared to older systems.
2. Health and Safety Compliance
By capturing overspray and VOCs, advanced filtration protects workers from inhaling harmful substances. This helps companies meet occupational health standards (like OSHA regulations) and reduces the risk of workplace illnesses. It also prevents emissions from exceeding environmental limits, avoiding fines and reputational damage.
3. Reduced Maintenance and Costs
Modern filters last longer due to improved materials and designs. For example, gradient density dry filters need replacement 30% less often than traditional filters. Wet systems with automatic sludge removal reduce manual cleaning time. Over time, these savings offset the initial cost of advanced filtration systems.
4. Energy Efficiency
New filtration systems are designed to work with low-energy fans and pumps. Electrostatic filters, for instance, use less power than older models, while efficient airflow designs reduce the energy needed to circulate air through the booth. This lowers overall energy consumption and operational costs.
5. Versatility for Different Paints
Advanced filtration handles a wide range of paints, including water-based, solvent-based, and powder coatings. This flexibility allows manufacturers to switch between paint types without changing the entire filtration system, making production more adaptable.
Factors to Consider When Choosing Filtration Technology
Selecting the right filtration system for an industrial paint booth depends on several factors:
- Paint Type: Solvent-based paints release more VOCs, requiring carbon filtration. Water-based paints generate more overspray, making wet or high-efficiency dry filters better choices.
- Production Volume: High-volume booths (e.g., automotive lines) need robust systems like wet filtration that handle heavy overspray. Low-volume booths may use dry filters for cost-effectiveness.
- Regulatory Requirements: Areas with strict VOC limits (like Europe or California) require carbon or catalytic filtration. Cleanroom applications need HEPA/ULPA filters to meet precision standards.
- Maintenance Capability: Wet systems require more water management and sludge disposal, while dry filters need regular replacement. Choose a system that fits your facility’s maintenance resources.
FAQ
How often do filters in industrial paint booths need to be replaced?
It depends on the system: dry pre-filters may need replacement every 1–2 weeks in high-use booths, while main filters last 1–3 months. Carbon filters typically last 3–6 months, and HEPA filters can last 6–12 months with proper maintenance.
Can advanced filtration systems reduce paint waste?
Yes. By capturing overspray efficiently, less paint is lost to the air, and fewer defects mean less rework (which wastes paint). Some systems even allow for overspray recycling in certain paint types.
Are wet filtration systems better than dry systems for large industrial booths?
Wet systems are often better for large booths with high overspray volumes because they handle heavy particle loads without frequent filter changes. However, they require more water and sludge management.
Do advanced filtration systems increase energy costs?
No, modern systems are designed to be energy-efficient. Improved airflow designs and low-power components (like electrostatic ionizers) reduce energy use compared to older, less efficient filtration.
How do filtration systems help with environmental compliance?
They capture VOCs and particulate matter, ensuring emissions stay below legal limits set by agencies like the EPA. This avoids fines and helps companies meet sustainability goals.
