Product Description

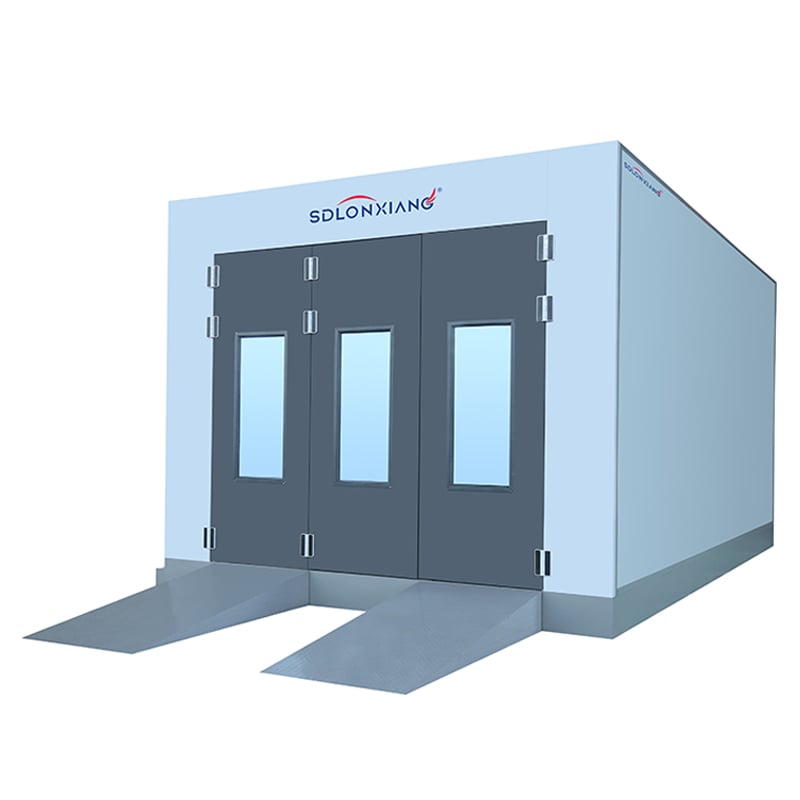

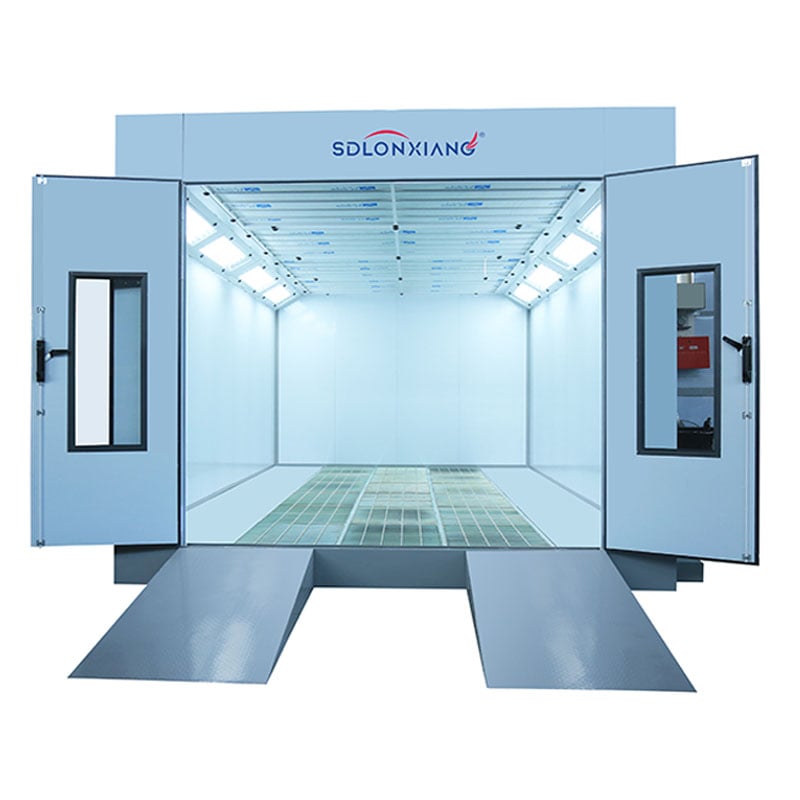

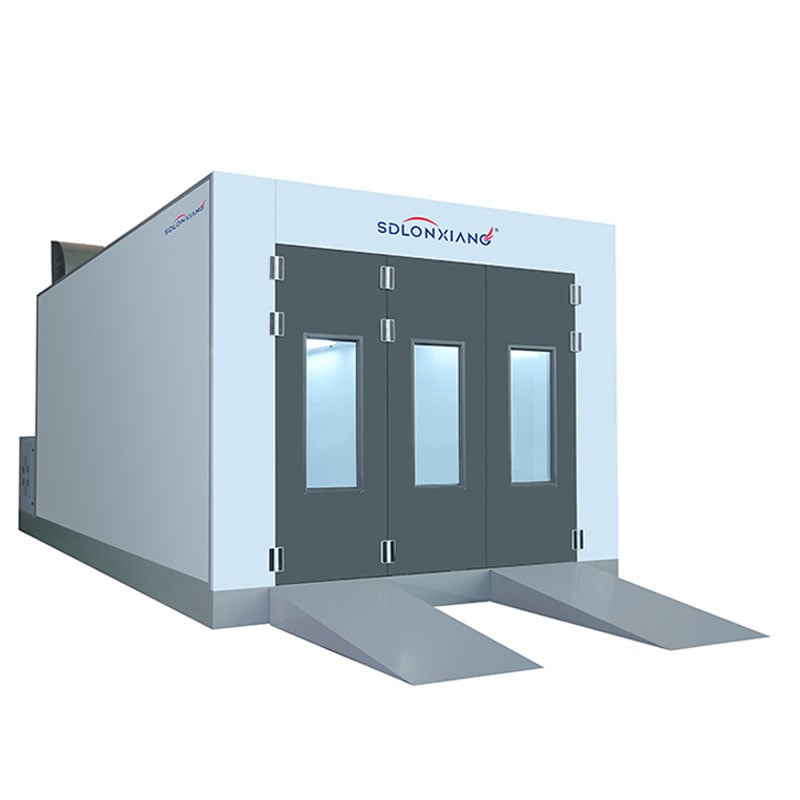

Longxiang Automotive Spray Booth – Built for Performance, Designed for You
Longxiang spray booths combine painting and baking in one compact, efficient unit—saving space while improving productivity.Our spray booth with the advanges of fast drying of primer and finish coats helps speed up workflow and deliver high-quality results.
Longxiang paint booth available in electric, diesel and gas heating models, our paint booths feature advanced air filtration systems (e.g. filter cotton) and high-speed ventilation, ensuring a clean, dust-free environment. This reduces paint defects and eliminates the need for extra polishing.
Each spray booth is equipped with a thermostatic controller and explosion-proof safety system, offering stable and secure operation.
With 23 years of industry experience, Longxiang has developed ergonomic designs that minimize spray booth maintenance and allow easy one-person servicing. Our paint booth focus on reducing operational costs without compromising performance or safety.
We offer a 12-month warranty and support customization services tailored to your specific needs.
Product Advantages
Car spray booth
1. Burner:
Original ltalian burner:big heat exchange area,sufficient combustion,and high heat efficiencysafe and reliable.
2. Control Box:
Intuitive and easy opera-tion.
3. Fan:
Small size, large airvolume, low noise,smallvibration, heat and mois-ture resistance, durable.
4. Grills:
Reasonable in structure and durable,ensure load bearing, galvanized and anti-rust treatment.
5. Basement:
Made of galvanized steelplate laser cutting and as-sembled with galvanized square tubes, standard-ized and durable.
6. Lighting：
3C quality certified tem-pered glass high lighttransmission panel. Lamphorizontal illuminance.≥800LUX.
Product Parameter
LX2S | |
Outside size |
7000×5350×3400mm(L×W×H) |
Inside size |
6900×3900×2650mm(L×W×H) |
Entrance door |
3 folds,3000*2605 mm(W*H), bending steel door, aluminum hinge, tempered glass window |
Emergency door |
650*2000mm(W*H),with pressure lock，with glass window，with step |
Main System | ||
Cabin system |
Wall panel |
-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel. |
Basement |
-Galvanized steel assemble,280mm high,quadrate steel support,2 rows of grills,3 rows of indented plates. -2 ramps,external setting,620*2000mm(W*L)/pc |
|
Ventilation system |
Inlet fan |
1*7.5KW turbo fan, air capacity: 28000m³/h, direct drive |
Outlet fan |
1*7.5KW turbo fan, air capacity: 28000m³/h, direct drive |
|
Cabinet setting type |
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful . -910mm height Air duct*2 units -Elbow:90°*1 unit |
|
Heating system |
Burner |
Italy RIELLO G20 diesel burner, heating capacity: 180000Kcal/h,heating time:6-8 min(20-60℃),fuel consumption is 5-8kg/vehicle with pneumatic damper |
Heating Exchanger |
1.2mm thickness SUS304 stainless steel |
|
Cabinet |
Rock wool interlayer, thermal insulation, flame retardant |
|
Lighting system |
Ceiling lights |
8*4pcs*16w LED lighting |
Side lights |
Optional |
|
Filtering system |
Primary filter |
Grade G2 plate type , filtering rate＞83% |
Ceiling filter |
EU5 grade high efficient filter,filtering rate＞98% |
|
Floor filter |
Multi-layer fiberglass filter,filtering rate＞70% |
|
Control system |
Control panel |
Intelligent control system |
Function |
Painting, risen-temperature painting, baking, time setting, lighting, failure indication, thermostatic switch, power switch, emergency stop |
|
Voltage/Frequency |
380V,50HZ,3 phase |
|
Total power |
16.5KW |
|
FAQ
1.Who are we?
Shandong Longxiang Machinery Co., Ltd. is a professional manufacturer and exporter of auto body repair and maintenance equipment.
2.How about your service?
All product have one year warranty and life-long technology support.
3.What can you buy from us?
Auto body repair and maintemance equipment(spray booth,prep station booth,auto body painting line,car frame machine,car lift,infared heating lamps,etc.), woodworking machinery(furniture spray booth,water curtain spray booth,dry spray booth,etc.)
4.Why should you buy from us not from other suppliers?
Focus on spray booth designing and producing for ten years and export for more than 40 countries from the world.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR.CIF.EXW.CIP;
Accepted Payment Currency:USD,EUR.JPY AUD,CNY;
Accepted Payment Type: T/T,L/C.Cash;
Language Spoken:English,Chinese
6.What is your delivery date?
Normonally we will ship you our standard specifications goods about 7-10 days after receiving your payment. It depends on the quantities you order.
7.Can you design the spray booth according to our request?
Of course.All product can be customized with your own designs.
8.Where is your factory located?How can i get there?
Our factory is located in Longxiang industrial park.Shandong province.China. About an hour from Jinan internation-al airport. Welcome to our factory from all over the word.
